Smart XPDU Remote Monitoring Power Distribution Unit from China Suppliers and Factory
| Product Name | Orient PDU power distribution Unit |
| Product No. | OIT-XPDU-42(CSK-CS-G1)-63A-3P |
| The max input current | 3 phases Max 63A per phase |
| Input Connector | Connecting Terminal Box |
| Output Socket | C39 Socket; 42 ways |
| Output Rated current | 63A |
| Output Voltage and Current | 200-240VAC, 16A |
| Dimensions with Bracket | 2200*65*70mm |
| Shipping Dimensions | 2245*105*125mm |
| Color | Black |
| Net Weight | 12.5Kg |
| Shipping Weight | 14.2Kg |
| Certificate | ETL CE RoHS OEM |
| OEM/ODM | Yes |
| Packing | 1pc/plastic bag/inner box; outer paper box |
| Category | Feature | Specification Details (OIT-XPDU-42(CSK-CS-G1)-63A-3P) |
|---|---|---|
| Electrical | Rated Input voltage | 200-240/346-415VAC, 3PH, WYE |
| Input Current (phase) | Max.63A (each phase) | |
| Input frequency | 50/60 Hz | |
| Input Connector | Connecting Terminal Box | |
| Output Voltage and Current | 200-240VAC, 16A | |
| Output Connectors (Qty) | (42) C39 | |
| Protection | 20A Hydraulic magnetic circuit breaker per outlet | |
| Physical | Mount Style | Vertical or Horizontal |
| Dimensions_Chasis | 2170*50mm | |
| Dimensions_with Bracket | 2200*65*70mm | |
| Shipping Dimensions | 2245*105*125mm | |
| Weight (Net) | 12.5Kg | |
| Shipping Weight | 14.2Kg | |
| Operating Temp | -5° to +50°C | |
| Operating Humidity | 5-95%RH, non-condensing | |
| Operating Altitude | 0–2000 m (0–6,600 ft) | |
| Storage Altitude | 0–15000 m (0–50,000 ft) | |
| Compliance | RoHS & Reach |
| Category | Parameter | Specifications & Capabilities |
|---|---|---|
| User Interface | Display screen | 2.4" TFT color screen |
| Operating key | Up button, down button, menu button | |
| Communication interface | SNMP V1/V2c/V3 HTTP/HTTPS, Telnet/SSH, MODBUS-RTU/TCP, NTP, SSL/STL, SMTP/SMTPS | |
| Temperature and humidity interface | Two | |
| Pilot lamp | Power light, running light, communication light, warning light | |
| Meter & Switch Type | Total PDU measurement | Voltage, current, power, electrical energy |
| Measurement of each phase | Voltage, current, power, electrical energy | |
| Remote control (on/off) | Each output can be controlled remotely on/off (YES) | |
| Custom sequence | Users can customize the power-on/power-off sequence and interval for each output (YES) | |
| Group control | The output unit can be controlled in groups (YES) | |
| Cascade function | Yes, Rs485 SNMP |
OIT-SMART-XPDU Intelligent Rack PDU | Smart Power Distribution for Data Centers
Product Overview: OIT-SMART-XPDU is a next-generation Intelligent Power Distribution Unit (Smart PDU) independently developed and manufactured by OIT. Designed for modern data centers, server racks, AI computing cabinets, and high-density IT environments, it provides advanced power monitoring, remote control, and energy management at the cabinet level.
Available in two versions:
- Metered PDU – Real-time power monitoring and energy measurement
- Switched PDU – Remote outlet-level control and intelligent power management
It enables full visibility and control of total cabinet power consumption, helping improve efficiency, reliability, and uptime.
- ✔️ Real-time monitoring of voltage, current, load, active power, apparent power, power factor, and energy consumption
- ✔️ Remote monitoring via upper-level management platform (IP-based control)
- ✔️ Programmable alarm thresholds for: Overvoltage, Undervoltage, Overload, Overcurrent
- ✔️ Advanced power analytics to support PUE optimization and data center energy statistics
- ✔️ Data logging and storage through centralized monitoring system
- ✔️ Optimized performance compared with traditional rack PDUs
Designed for cabinet-level power distribution in:
- 🔹 Cloud computing data centers
- 🔹 AI computing & high-density racks (e.g. 8–15kW per rack)
- 🔹 IDC facilities
- 🔹 Blade server cabinets
- 🔹 Environments requiring remote power management
- 🔹 Cabinets requiring PUE monitoring
Ideal for AI data centers, high-density server racks, telecom rooms, and enterprise IT infrastructure.
⚡ Intelligent Power Management
Accurate energy metering per unit. Remote ON/OFF control per outlet (Switched version) and individual socket control capability.
🚨 Smart Alarm System
Adjustable upper & lower current limits. Automatic alarm trigger when threshold is exceeded with visual and system-level alert notifications.
⛓️ Cascading Function
Supports communication cascading up to 4 units in cascade configuration. Simplified localized address setting.
⏱️ Sequential Start Function
Default 1-second sequential startup. Adjustable delay interval via management platform prevents inrush current and improves system stability.
📺 Remote Power Control
Remotely reboot or shut down connected equipment. Ideal for unmanned data centers.
📦 Space-Saving Design
Vertical 0U installation. No occupation of horizontal rack space. Suitable for standard 19-inch cabinets.
- ✔️ Intelligent Rack PDU 15-Year Manufacturer
- ✔️ Data Center Power Management Solution Provider
- ✔️ Energy-Efficient & High-Reliability Design
- ✔️ Ideal for Smart Data Centers & AI Infrastructure
- ✔️ OEM / ODM Supported
Dongguan Orient Tech., Ltd., established in 2011, is a leading manufacturer specializing in a wide range of innovative products, including Power Distribution Units (PDUs), switchgear, rack, immersion cooling systems, smart power solutions, smart home products and more. With a 10,500-square-meter facility and a dedicated team of 300+ professionals, Orient focuses on delivering high-quality products for industries like data centers, education, and smart home applications.
Orient main product offerings include Power Distribution Units (PDUs), 19" cabinets, and OEM/ODM services. These PDUs are designed for efficient power management in Internet Data Centers (IDCs) and industrial applications. We also provide switchgear solutions, external battery/power cabinets, and immersion cooling systems for high-density computing and 5G applications.
For educational and public spaces, we offer charging cabinets and carts for laptops, tablets, and phones, ideal for schools and libraries. Our smart sockets, plugs, and power strips feature advanced functionalities like fast charging, remote/voice control, Wi-Fi, energy-saving, and timers.
In the smart lighting sector, we provide RGB smart colorful bulbs and light strips, allowing users to customize lighting for any environment. We also manufacture durable power cords for various applications. ISO 9001:2015 certified, we ensure all products meet international standards like CE, RoHS, UL, VDE, and ETL. Our rigorous testing process guarantees safety, functionality, and long-lasting performance. At Orient Tech, we are committed to providing innovative solutions that meet the evolving needs of our global customers.

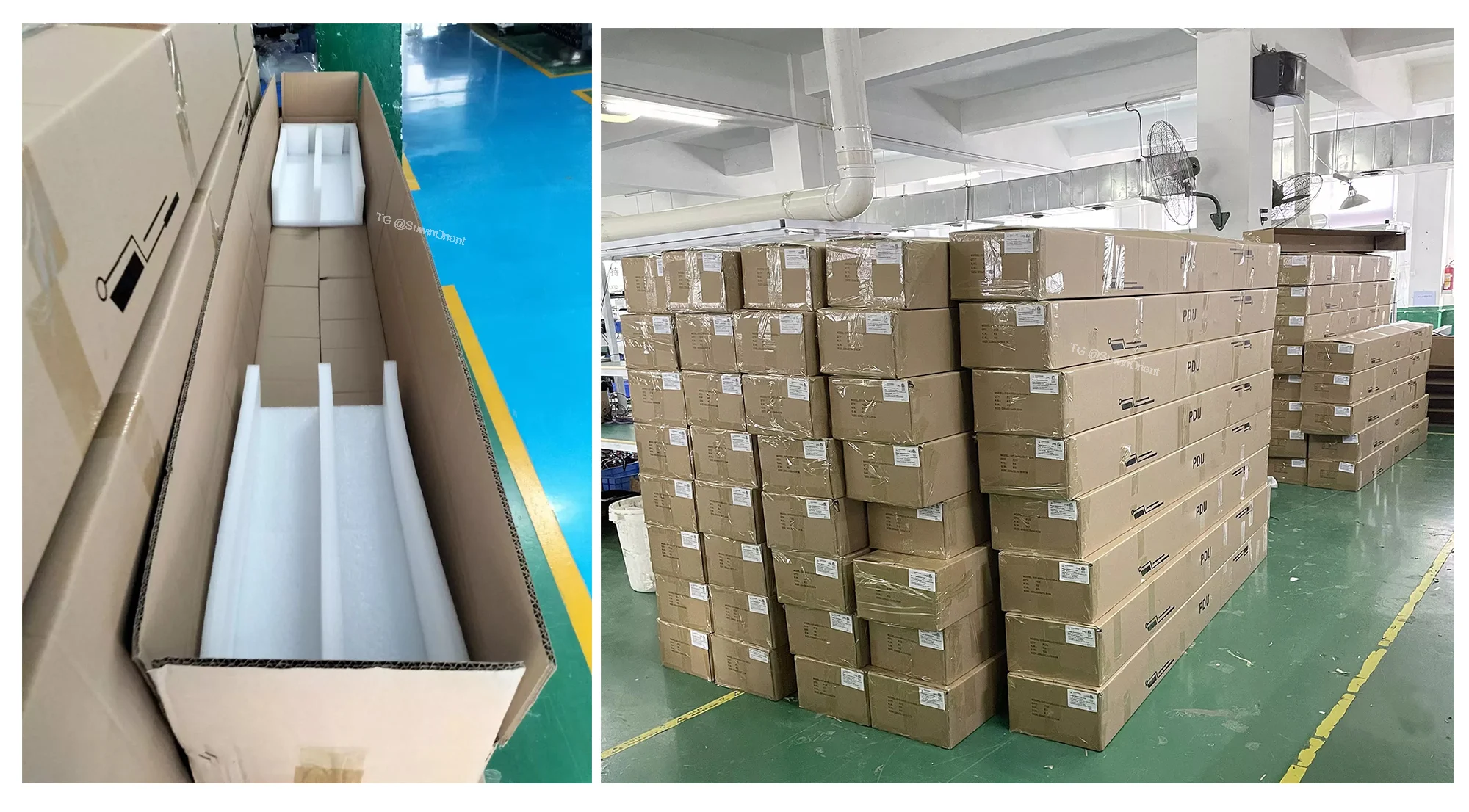

PE bag, Carton Box for PDU.
⚡ What is the difference between the Metered PDU and Switched PDU versions?
The Metered PDU provides real-time power monitoring and energy measurement at the cabinet level. The Switched PDU includes all of these monitoring features plus remote outlet-level control, allowing users to turn individual sockets on or off remotely.
📦 How does the vertical 0U installation benefit server rack setups?
A vertical 0U installation mounts on the side of the server cabinet, meaning it occupies no horizontal rack space. This maximizes the space available for servers and other IT equipment in standard 19-inch cabinets.
⏱️ What is the Sequential Start Function and why is it important?
The Sequential Start Function introduces an adjustable delay (defaulting to 1 second) when powering on connected devices. This prevents inrush current spikes that could overload the circuit breaker, ensuring overall system stability during boot-ups.
⛓️ How many PDU units can be cascaded together?
The OIT-SMART-XPDU supports communication cascading via RS485 and SNMP, allowing you to link up to 4 units in a single cascade configuration with simplified localized address settings.
🚨 What parameters can trigger the smart alarm system?
The smart alarm system triggers visual and system-level alert notifications based on user-adjustable upper and lower thresholds for overvoltage, undervoltage, overload, and overcurrent conditions.
✔️ What certifications do Orient Tech products carry?
Orient Tech is ISO 9001:2015 certified, and all products meet international standards including ETL, CE, RoHS, Reach, UL, and VDE, ensuring safety, reliability, and top performance.
