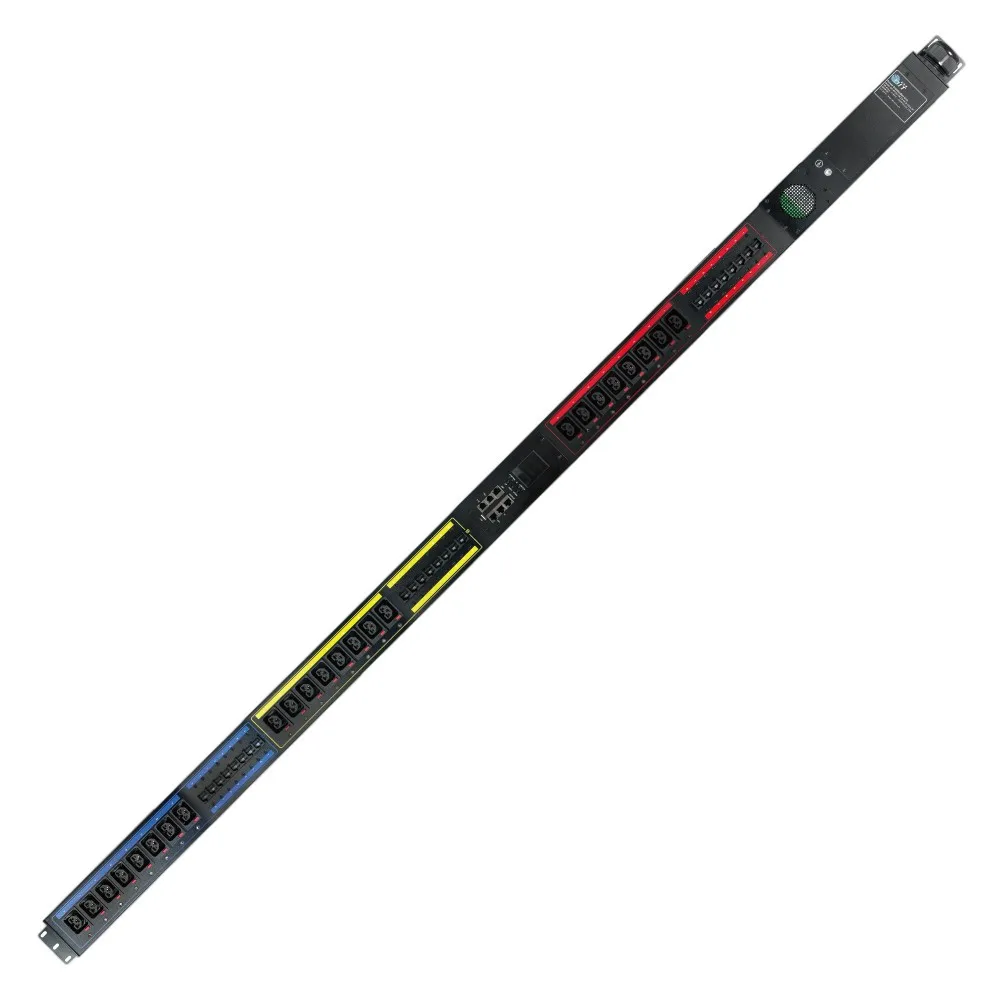

Orient PDU Latest XPDU Metered Power Distribution Unit
Product display
|
Product Name
|
Orient PDU power distribution Unit
|
|
Product No.
|
OIT-RPDU-24C39-MCB-125A-3P
|
|
The max input current
|
3 phases Max 125A per phase
|
|
Overload protector
|
Each 16A hydraulic magnetic switch controls a 1-position output socket.
|
|
Input Connector
|
160Ax5wires(or junction box,input breaker
optional,price difference,) |
|

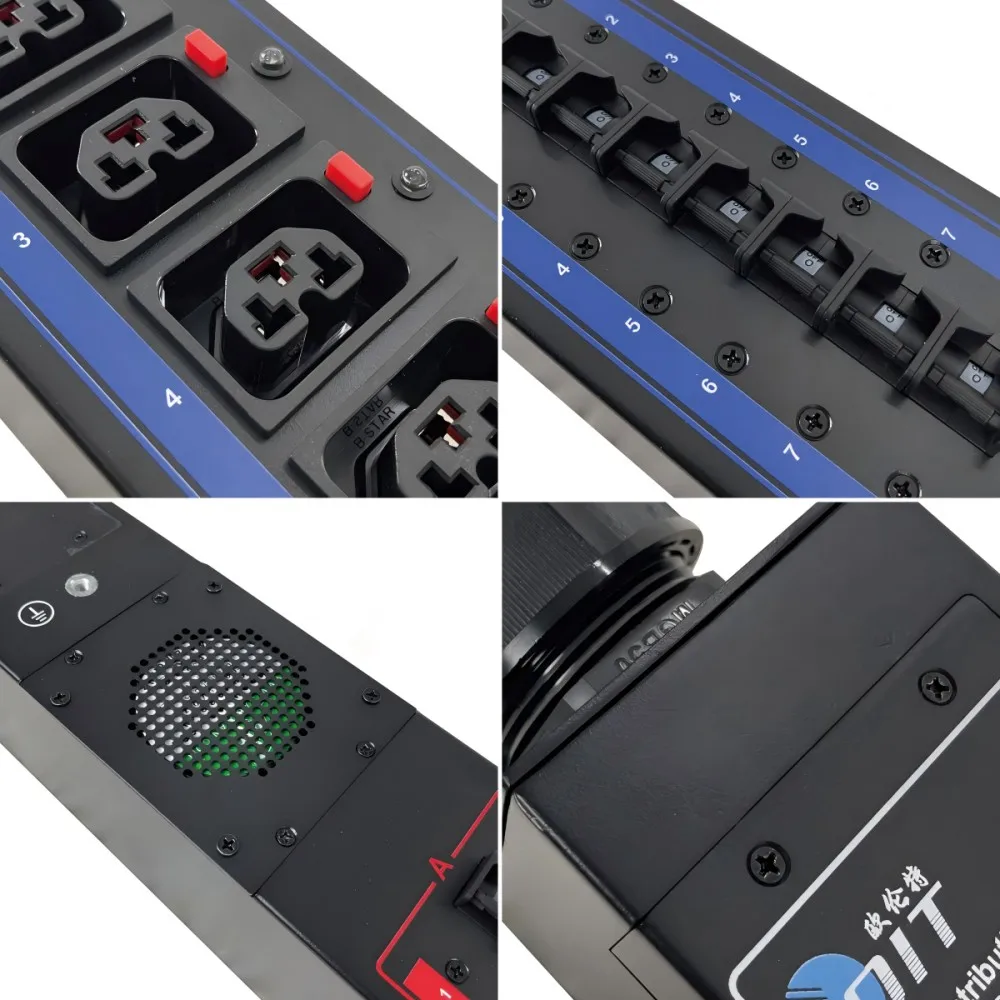

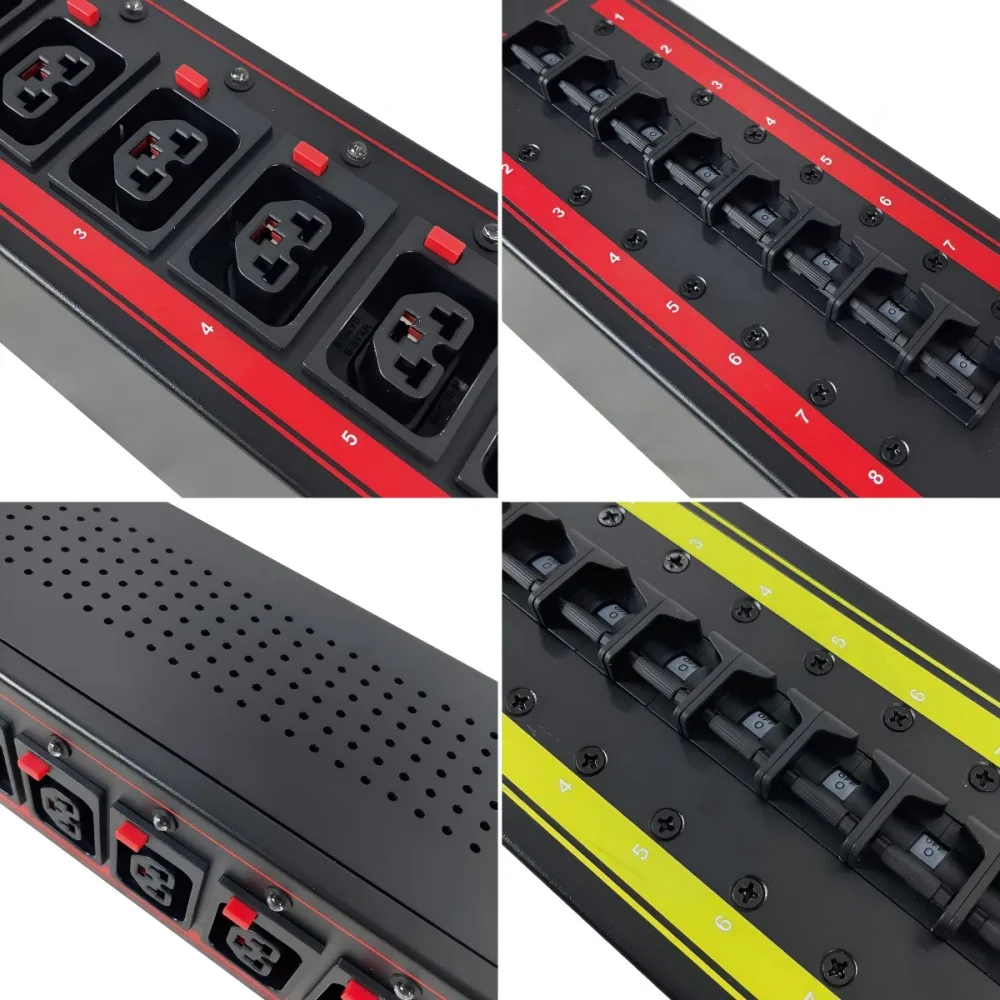

Output Socket
|
C39 Socket;24 ways
|
|
Output Rated current
|
16A
|
|
Rated output voltage
|
220-240Vac
|
|
Product size
|
L×W×H =2145x85x100mm
|
|
Color
|
black
|
|
Net Weight
|
20 KG
|
|
Certificate
|
ETL CE RoHS OEM
|
|
OEM/ODM
|
Yes
|
|
Packing
|
1pc/plastic bag/inner box
|

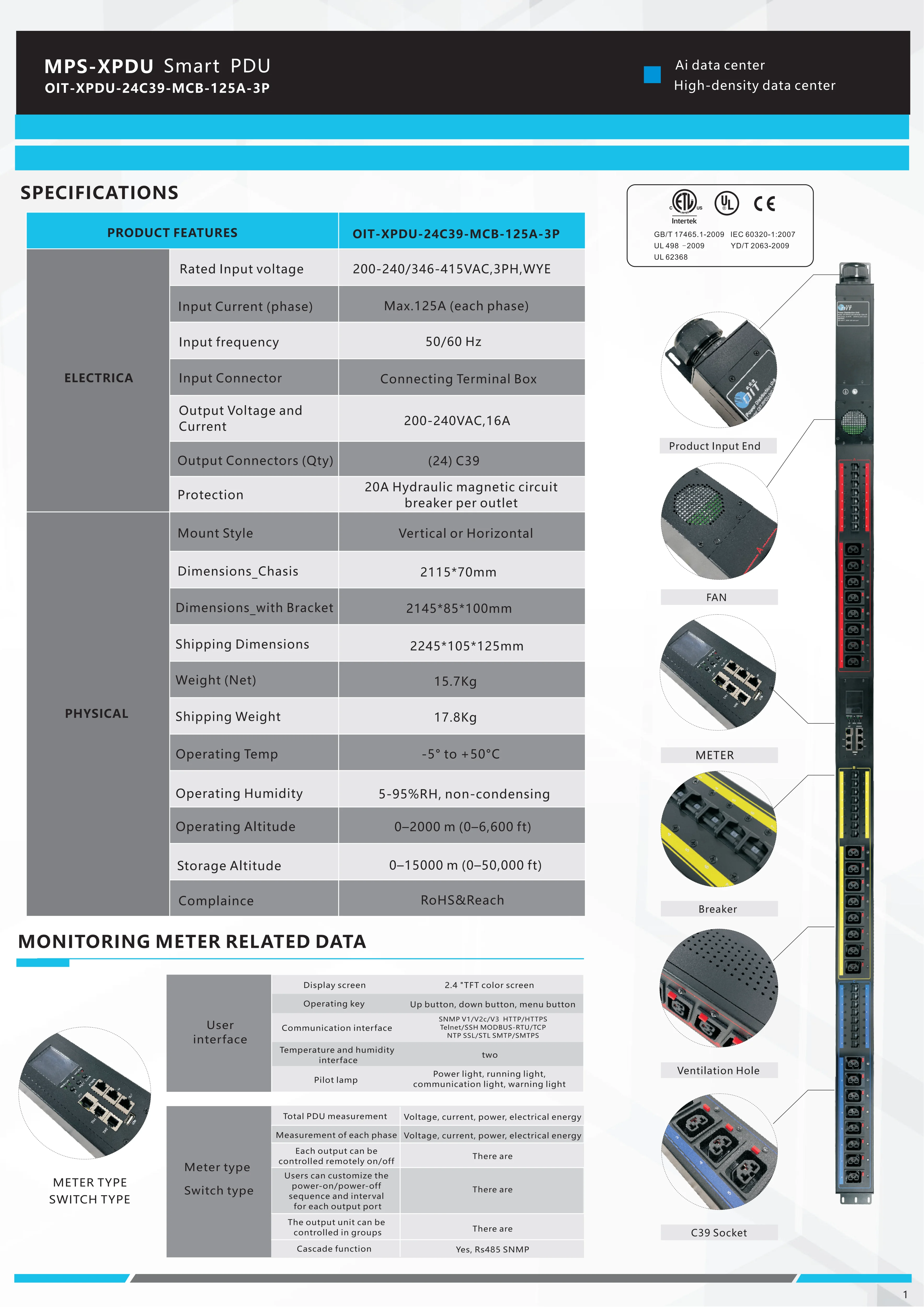

PDU specifications
|
Product features
|
OIT-XPDU-24C39-MCB-125A-3P
|
||
|
Electrical
|
Rated Input voltage
|
200-240/346-415VAC,3PH,WYE
|
|
|
Electrical
|
Input Current (phase)
|
Max.125A (each phase)
|
|
|
Input frequency
|
50/60 Hz
|
||
|
Input Connector
|
Connecting Terminal Box
|
||
|
Output Voltage and
Current |
200-240VAC,16A
|
||
|
Output Connectors (Qty)
|
(24) C39
|
||
|
Protection
|
20A Hydraulic magnetic circuit breaker per outlet
|
||
|
PHYSICAL
|
Mount Style
|
Vertical or Horizontal
|
|
|
Dimensions_Chasis
|
2115*70mm
|
||
|
Dimensions_with Bracket
|
2145*85*100mm
|
||
|
Shipping Dimensions
|
2245*105*125mm
|
||
|
Weight (Net）
|
15.7Kg
|
||
|
Shipping Weight
|
17.8Kg
|
||
|
Operating Temp
|
-5° to +50°C
|
||
|
Operating Humidity
|
5-95%RH, non-condensing
|
||
|
Operating Altitude
|
0–2000 m (0–6,600 ft)
|
||
|
Storage Altitude
|
0–15000 m (0–50,000 ft)
|
||
|
Complaince
|
RoHS&Reach
|
||
|

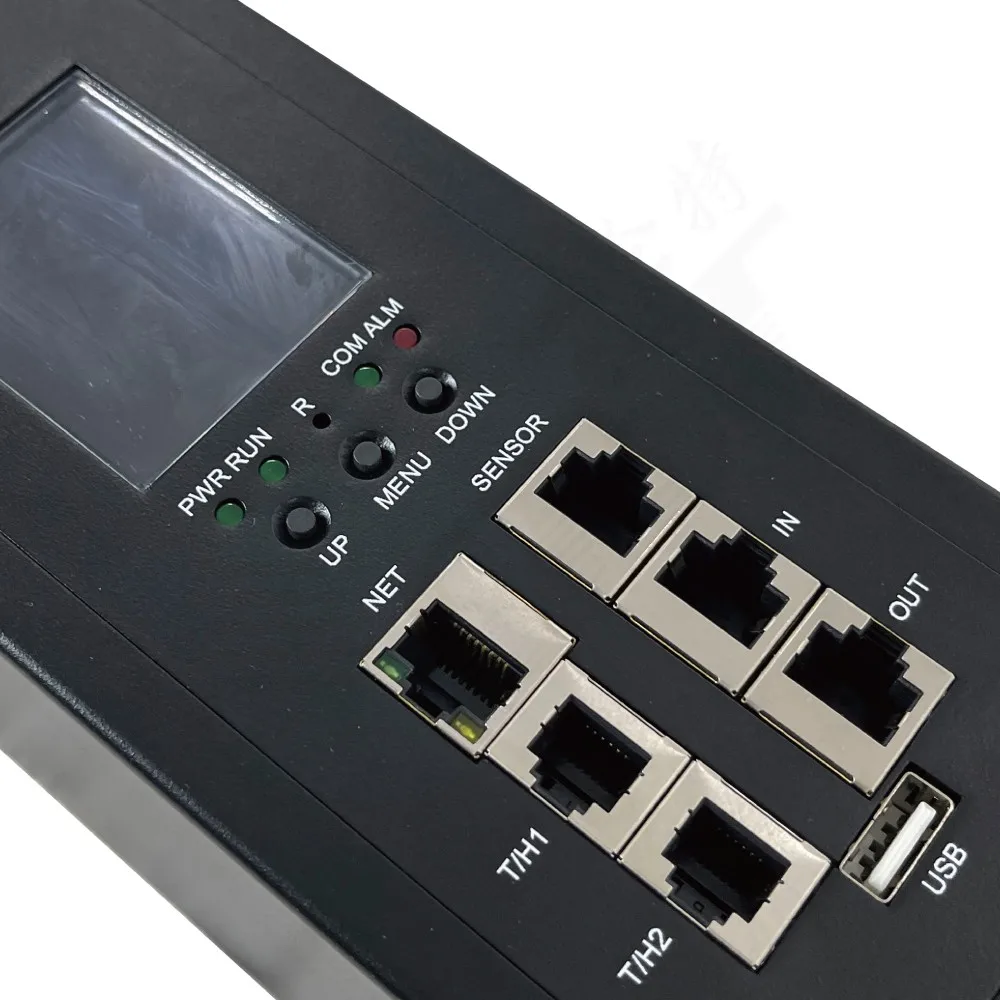

MONITORING METER RELATED DATA
|
||||
|
User
interface
|
Display screen
|
2.4 "TFT color screen
|
||
|
Operating key
|
Up button, down button, menu button
|
|||
|
Communication interface
|
SNMP V1/V2c/V3 HTTP/HTTPS
Telnet/SSH MODBUS-RTU/TCP NTP SSL/STL SMTP/SMTPS |
|||
|
Temperature and humidity
interface |
two
|
|||
|
Pilot lamp
|
Power light, running light,
communication light, warning light |
|||
|
Meter type
Switch type
|
Total PDU measurement
|
Voltage, current, power, electrical energy
|
||
|
Measurement of each phase
|
Voltage, current, power, electrical energy
|
|||
|
Each output can be
controlled remotely on/off |
YES
|
|||
|
Users can customize the
power-on/power-off sequence and interval for each output |
YES
|
|||
|
The output unit can be
controlled in groups |
YES
|
|||
|
Cascade function
|
Yes, Rs485 SNMP
|
|||
Product Description
Latest Orient MPS XPDU
PRODDUCT INTRODUCTION
OIT-SMART-XPDU
Intelligent Rack PDU | Smart Power Distribution for Data Centers
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Product Overview
OIT-SMART-XPDU is a next-generation Intelligent Power Distribution Unit (Smart PDU) independently developed and manufactured by OIT.
Designed for modern data centers, server racks, AI computing cabinets, and high-density IT environments, it provides advanced power monitoring, remote control, and energy management at the cabinet level.
Available in two versions:
* Metered PDU – Real-time power monitoring and energy measurement
* Switched PDU – Remote outlet-level control and intelligent power management
It enables full visibility and control of total cabinet power consumption, helping improve efficiency, reliability, and uptime.
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Performance & Advantages
✔ Real-time monitoring of voltage, current, load, active power, apparent power, power factor, and energy consumption
✔ Remote monitoring via upper-level management platform (IP-based control)
✔ Programmable alarm thresholds for:
* Overvoltage * Undervoltage * Overload * Overcurrent
✔ Advanced power analytics to support PUE optimization and data center energy statistics
✔ Data logging and storage through centralized monitoring system
✔ Optimized performance compared with traditional rack PDUs
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Application Scenarios
Designed for cabinet-level power distribution in:
* Cloud computing data centers
* AI computing & high-density racks (e.g. 8–15kW per rack)
* IDC facilities
* Blade server cabinets
* Environments requiring remote power management
* Cabinets requiring PUE monitoring
Ideal for AI data centers, high-density server racks, telecom rooms, and enterprise IT infrastructure.
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Technical Features
⚡ Intelligent Power Management
* Accurate energy metering per unit
* Remote ON/OFF control per outlet (Switched version)
* Individual socket control capability
\uD83D\uDEA8 Smart Alarm System
* Adjustable upper & lower current limits
* Automatic alarm trigger when threshold is exceeded
* Visual and system-level alert notifications
\uD83D\uDD17 Cascading Function
* Supports communication cascading
* Up to 4 units in cascade configuration
* Simplified localized address setting
⏱ Sequential Start Function
* Default 1-second sequential startup
* Adjustable delay interval via management platform
* Prevents inrush current and improves system stability
\uD83D\uDDA5 Remote Power Control
* Remotely reboot or shut down connected equipment
* Ideal for unmanned data centers
\uD83D\uDCE6 Space-Saving Design
* Vertical 0U installation
* No occupation of horizontal rack space
* Suitable for standard 19-inch cabinets
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Why Choose OIT-SMART-XPDU?
* Intelligent Rack PDU 15-Year Manufacturer
* Data Center Power Management Solution Provider
* Energy-Efficient & High-Reliability Design
* Ideal for Smart Data Centers & AI Infrastructure
* OEM / ODM Supported
Intelligent Rack PDU | Smart Power Distribution for Data Centers
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Product Overview
OIT-SMART-XPDU is a next-generation Intelligent Power Distribution Unit (Smart PDU) independently developed and manufactured by OIT.
Designed for modern data centers, server racks, AI computing cabinets, and high-density IT environments, it provides advanced power monitoring, remote control, and energy management at the cabinet level.
Available in two versions:
* Metered PDU – Real-time power monitoring and energy measurement
* Switched PDU – Remote outlet-level control and intelligent power management
It enables full visibility and control of total cabinet power consumption, helping improve efficiency, reliability, and uptime.
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Performance & Advantages
✔ Real-time monitoring of voltage, current, load, active power, apparent power, power factor, and energy consumption
✔ Remote monitoring via upper-level management platform (IP-based control)
✔ Programmable alarm thresholds for:
* Overvoltage * Undervoltage * Overload * Overcurrent
✔ Advanced power analytics to support PUE optimization and data center energy statistics
✔ Data logging and storage through centralized monitoring system
✔ Optimized performance compared with traditional rack PDUs
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Application Scenarios
Designed for cabinet-level power distribution in:
* Cloud computing data centers
* AI computing & high-density racks (e.g. 8–15kW per rack)
* IDC facilities
* Blade server cabinets
* Environments requiring remote power management
* Cabinets requiring PUE monitoring
Ideal for AI data centers, high-density server racks, telecom rooms, and enterprise IT infrastructure.
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Technical Features
⚡ Intelligent Power Management
* Accurate energy metering per unit
* Remote ON/OFF control per outlet (Switched version)
* Individual socket control capability
\uD83D\uDEA8 Smart Alarm System
* Adjustable upper & lower current limits
* Automatic alarm trigger when threshold is exceeded
* Visual and system-level alert notifications
\uD83D\uDD17 Cascading Function
* Supports communication cascading
* Up to 4 units in cascade configuration
* Simplified localized address setting
⏱ Sequential Start Function
* Default 1-second sequential startup
* Adjustable delay interval via management platform
* Prevents inrush current and improves system stability
\uD83D\uDDA5 Remote Power Control
* Remotely reboot or shut down connected equipment
* Ideal for unmanned data centers
\uD83D\uDCE6 Space-Saving Design
* Vertical 0U installation
* No occupation of horizontal rack space
* Suitable for standard 19-inch cabinets
----------------------------------------------------------------------------------------------------------------------------------
\uD83D\uDD39 Why Choose OIT-SMART-XPDU?
* Intelligent Rack PDU 15-Year Manufacturer
* Data Center Power Management Solution Provider
* Energy-Efficient & High-Reliability Design
* Ideal for Smart Data Centers & AI Infrastructure
* OEM / ODM Supported
