China Smart XPDU Remote Monitoring by Leading Suppliers and Factory for Enhanced Power Distribution Management
Product Display
| Product Specification | Details |
|---|---|
| Product Name | Orient PDU power distribution Unit |
| Product No. | OIT-XPDU-42(CSK-CS-G1)-63A-3P |
| The max input current | 3 phases Max 63A per phase |
| Input Connector | Connecting Terminal Box |
| Output Socket | C39 Socket; 42 ways |
| Output Rated current | 63A |
| Output Voltage and Current | 200-240VAC, 16A |
| Dimensions with Bracket | 2200*65*70mm |
| Shipping Dimensions | 2245*105*125mm |
| Color | Black |
| Net Weight | 12.5Kg |
| Shipping Weight | 14.2Kg |
| Certificate | ETL CE RoHS OEM |
| OEM/ODM | Yes |
| Packing | 1pc/plastic bag/inner box; outer paper box |

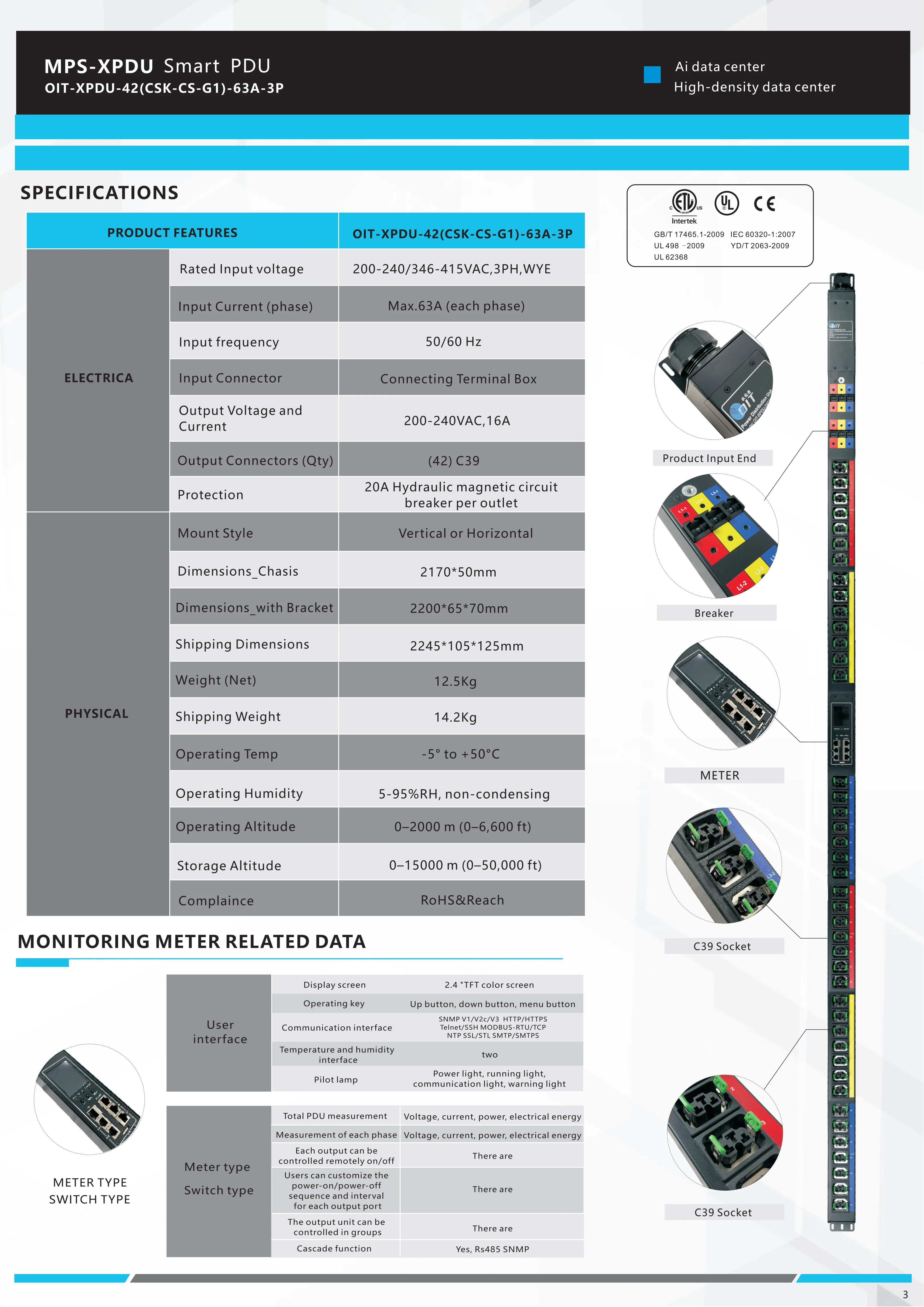

PDU Specifications
| Product Features & Electrical Parameters (OIT-XPDU-42(CSK-CS-G1)-63A-3P) | |
|---|---|
| Electrical Specifications | |

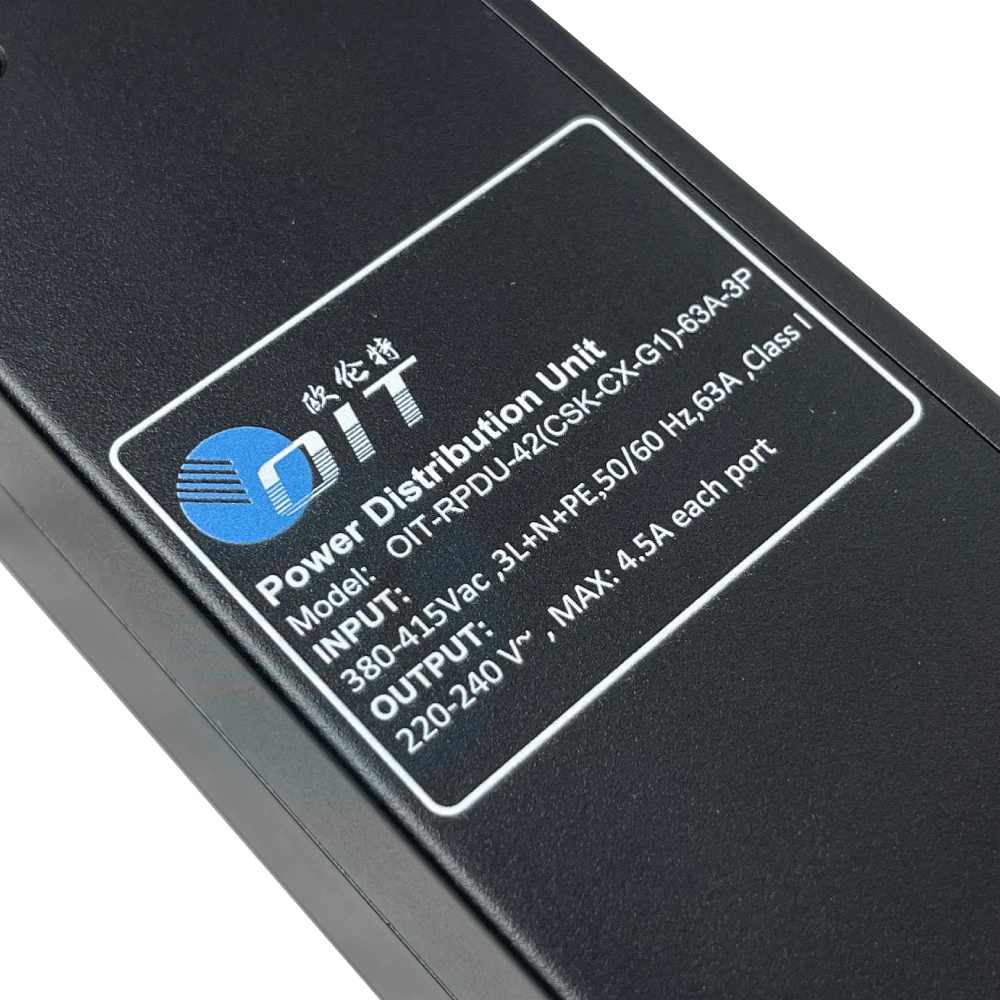

| Rated Input Voltage | 200-240/346-415VAC, 3PH, WYE |
| Input Current (phase) | Max.63A (each phase) |
| Input Frequency | 50/60 Hz |

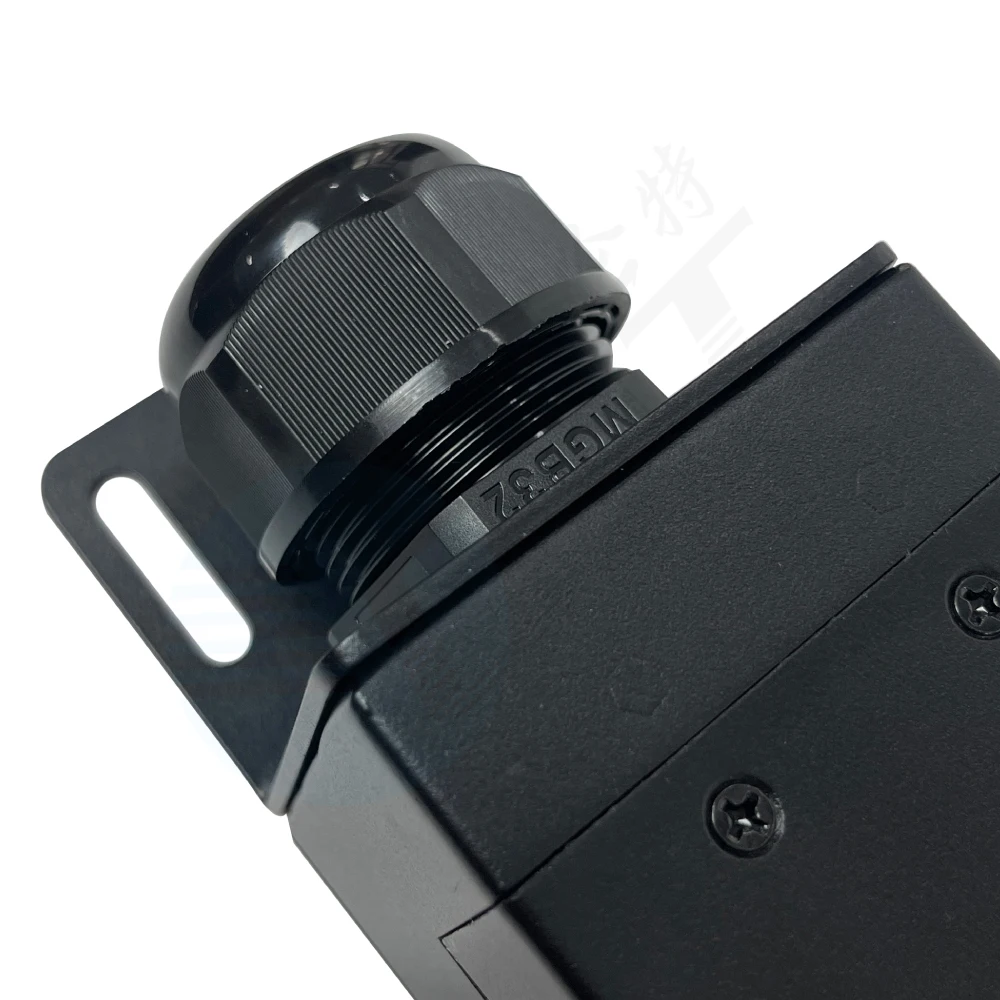

| Input Connector | Connecting Terminal Box |
| Output Voltage and Current | 200-240VAC, 16A |

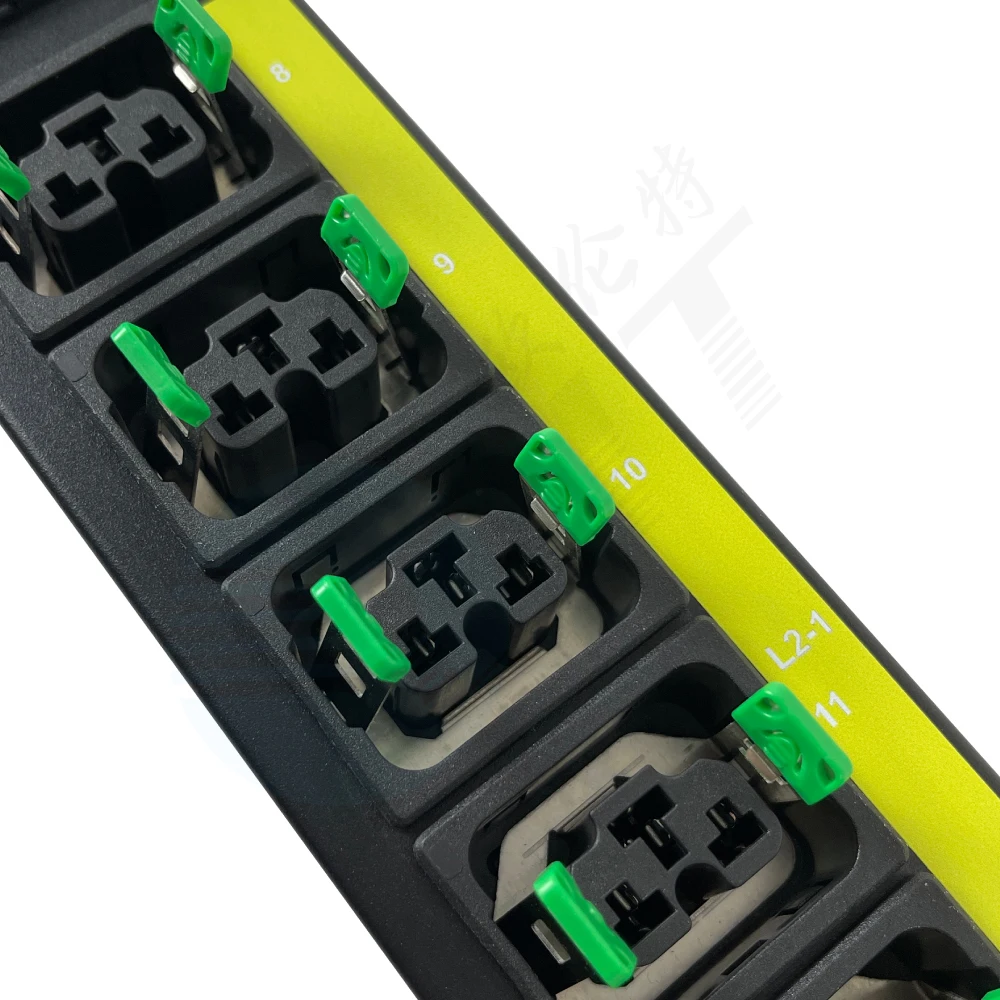

| Output Connectors (Qty) | (42) C39 |

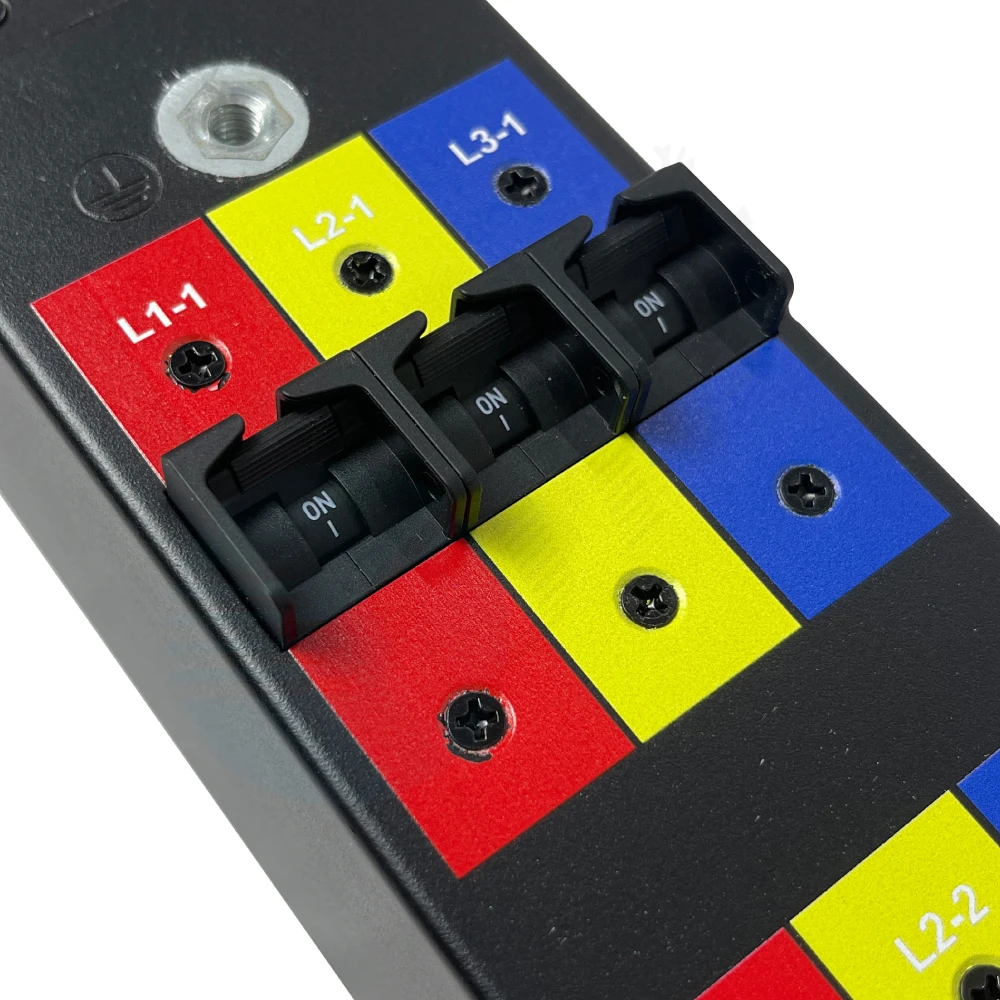

| Protection | 20A Hydraulic magnetic circuit breaker per outlet |
| Physical Specifications | |
| Mount Style | Vertical or Horizontal |
| Dimensions (Chassis) | 2170*50mm |
| Dimensions with Bracket | 2200*65*70mm |
| Shipping Dimensions | 2245*105*125mm |
| Weight (Net) | 12.5Kg |
| Shipping Weight | 14.2Kg |
| Operating Temp | -5° to +50°C |
| Operating Humidity | 5-95%RH, non-condensing |
| Operating Altitude | 0–2000 m (0–6,600 ft) |
| Storage Altitude | 0–15000 m (0–50,000 ft) |
| Compliance | RoHS & Reach |

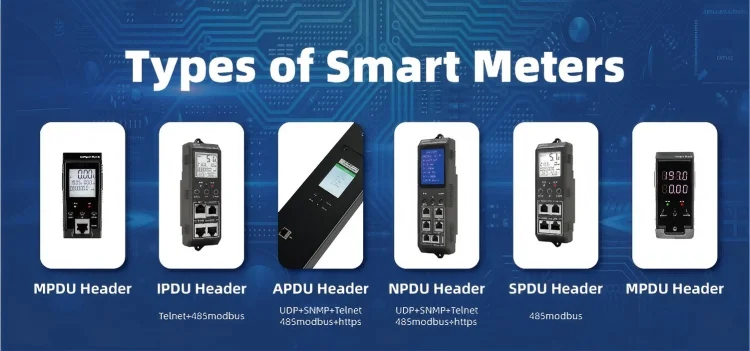

| Monitoring Meter Related Data | |
|---|---|

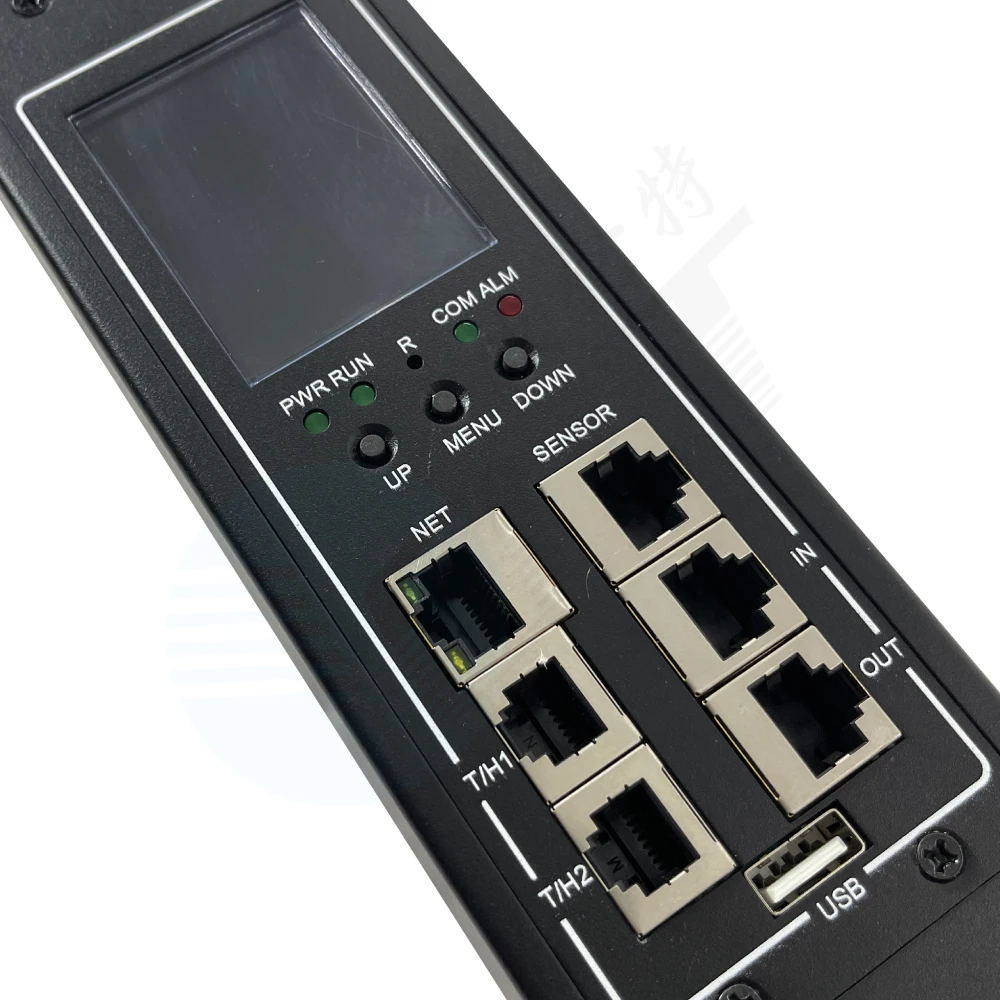

| User Interface | |
| Display Screen | 2.4" TFT color screen |
| Operating Key | Up button, down button, menu button |
| Communication Interface | SNMP V1/V2c/V3, HTTP/HTTPS, Telnet/SSH, MODBUS-RTU/TCP, NTP, SSL/STL, SMTP/SMTPS |
| Temperature & Humidity Interface | Two |
| Pilot Lamp | Power light, running light, communication light, warning light |
| Meter Type & Switch Type Features | |
| Total PDU Measurement | Voltage, current, power, electrical energy |
| Measurement of Each Phase | Voltage, current, power, electrical energy |
| Remote Output Control (On/Off) | Yes |
| Customizable Power Sequence | Yes, customize power-on/power-off sequence and interval for each output |
| Group Control | Yes, output units can be controlled in groups |
| Cascade Function | Yes, RS485 SNMP |
Product Description

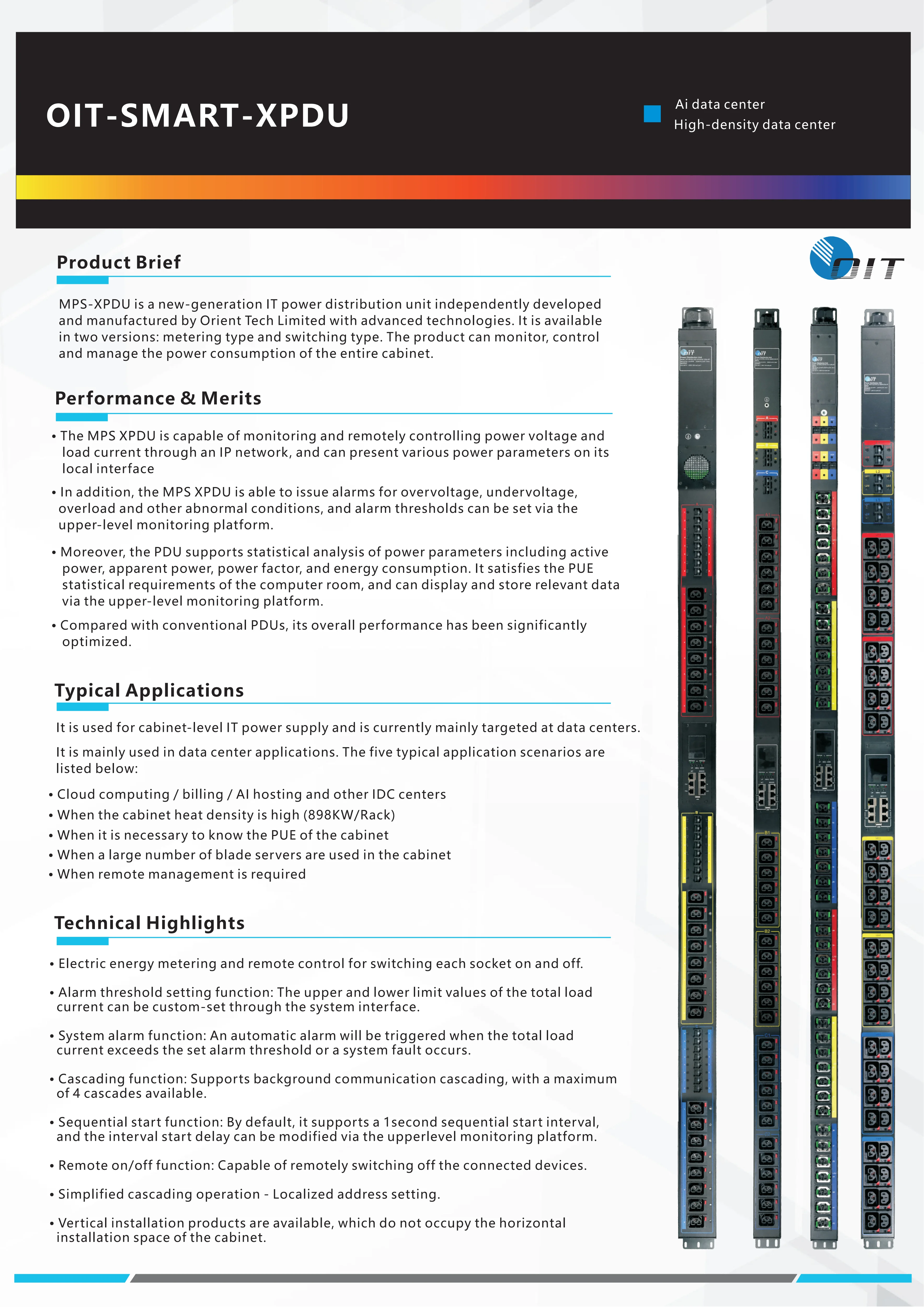

Intelligent Rack PDU | Smart Power Distribution for Data Centers
🔹 Product Overview
OIT-SMART-XPDU is a next-generation Intelligent Power Distribution Unit (Smart PDU) independently developed and manufactured by OIT. Designed for modern data centers, server racks, AI computing cabinets, and high-density IT environments, it provides advanced power monitoring, remote control, and energy management at the cabinet level.
Available in two versions:
* Metered PDU – Real-time power monitoring and energy measurement
* Switched PDU – Remote outlet-level control and intelligent power management
It enables full visibility and control of total cabinet power consumption, helping improve efficiency, reliability, and uptime.
🔹 Performance & Advantages
✔ Real-time monitoring of voltage, current, load, active power, apparent power, power factor, and energy consumption
✔ Remote monitoring via upper-level management platform (IP-based control)
✔ Programmable alarm thresholds for: Overvoltage, Undervoltage, Overload, Overcurrent
✔ Advanced power analytics to support PUE optimization and data center energy statistics
✔ Data logging and storage through centralized monitoring system
✔ Optimized performance compared with traditional rack PDUs
🔹 Application Scenarios
Designed for cabinet-level power distribution in:
* Cloud computing data centers
* AI computing & high-density racks (e.g. 8–15kW per rack)
* IDC facilities
* Blade server cabinets
* Environments requiring remote power management
* Cabinets requiring PUE monitoring
Ideal for AI data centers, high-density server racks, telecom rooms, and enterprise IT infrastructure.
🔹 Technical Features
⚡ Intelligent Power Management
* Accurate energy metering per unit
* Remote ON/OFF control per outlet (Switched version)
* Individual socket control capability
🚨 Smart Alarm System
* Adjustable upper & lower current limits
* Automatic alarm trigger when threshold is exceeded
* Visual and system-level alert notifications
🔗 Cascading Function
* Supports communication cascading
* Up to 4 units in cascade configuration
* Simplified localized address setting
⏱ Sequential Start Function
* Default 1-second sequential startup
* Adjustable delay interval via management platform
* Prevents inrush current and improves system stability
📺 Remote Power Control
* Remotely reboot or shut down connected equipment
* Ideal for unmanned data centers
📦 Space-Saving Design

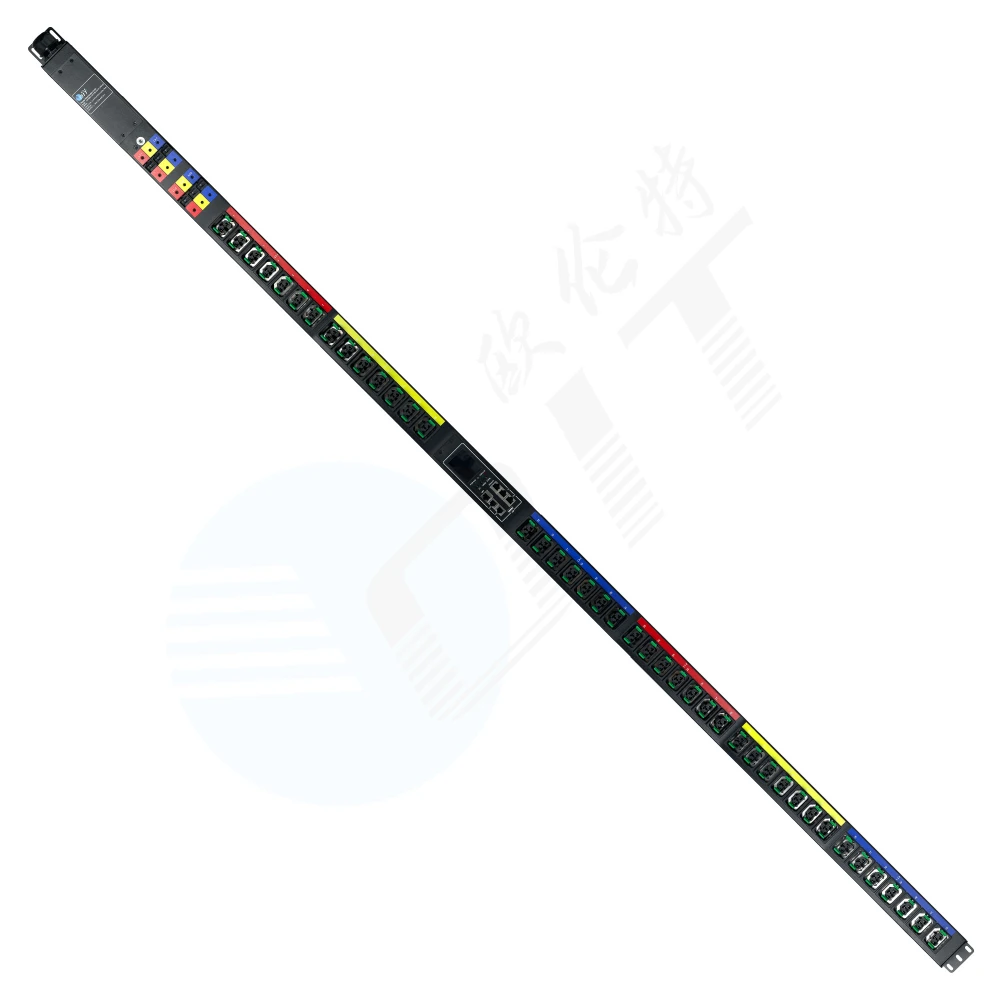

* Vertical 0U installation
* No occupation of horizontal rack space
* Suitable for standard 19-inch cabinets
🔹 Why Choose OIT-SMART-XPDU?
* Intelligent Rack PDU 15-Year Manufacturer
* Data Center Power Management Solution Provider
* Energy-Efficient & High-Reliability Design
* Ideal for Smart Data Centers & AI Infrastructure
* OEM / ODM Supported
Company Profile

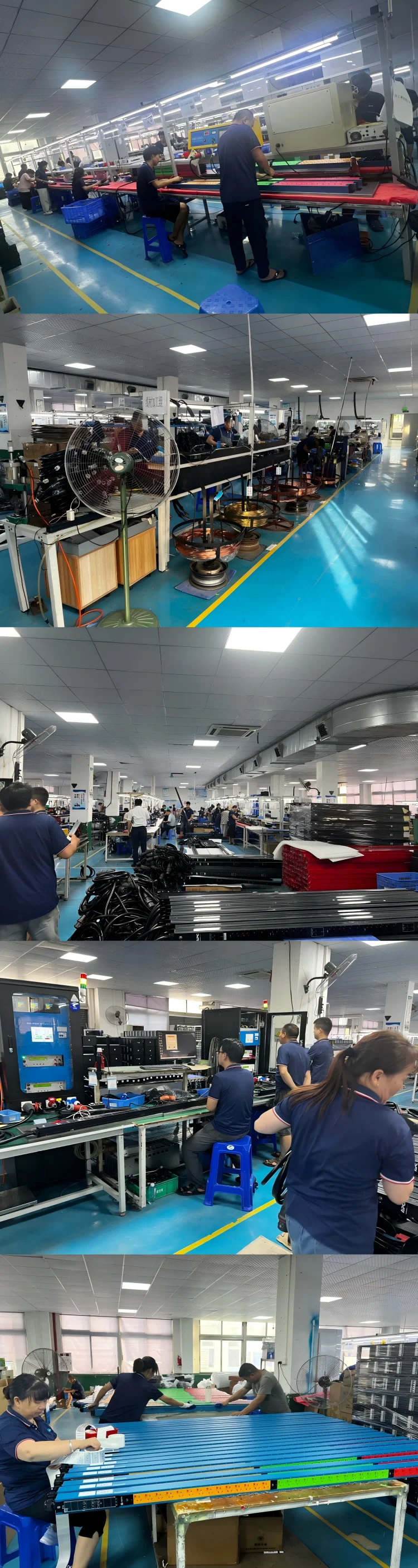

Dongguan Orient Tech., Ltd., established in 2011, is a leading manufacturer specializing in a wide range of innovative products, including Power Distribution Units (PDUs), switchgear, rack, immersion cooling systems, smart power solutions, smart home products and more. With a 10,500-square-meter facility and a dedicated team of 300+ professionals, Orient focuses on delivering high-quality products for industries like data centers, education, and smart home applications.
Orient main product offerings include Power Distribution Units (PDUs), 19" cabinets, and OEM/ODM services. These PDUs are designed for efficient power management in Internet Data Centers (IDCs) and industrial applications. We also provide switchgear solutions, external battery/power cabinets, and immersion cooling systems for high-density computing and 5G applications.
For educational and public spaces, we offer charging cabinets and carts for laptops, tablets, and phones, ideal for schools and libraries. Our smart sockets, plugs, and power strips feature advanced functionalities like fast charging, remote/voice control, Wi-Fi, energy-saving, and timers.
In the smart lighting sector, we provide RGB smart colorful bulbs and light strips, allowing users to customize lighting for any environment. We also manufacture durable power cords for various applications. ISO 9001:2015 certified, we ensure all products meet international standards like CE, RoHS, UL, VDE, and ETL. Our rigorous testing process guarantees safety, functionality, and long-lasting performance. At Orient Tech, we are committed to providing innovative solutions that meet the evolving needs of our global customers.
Packing & Delivery
Exhibition

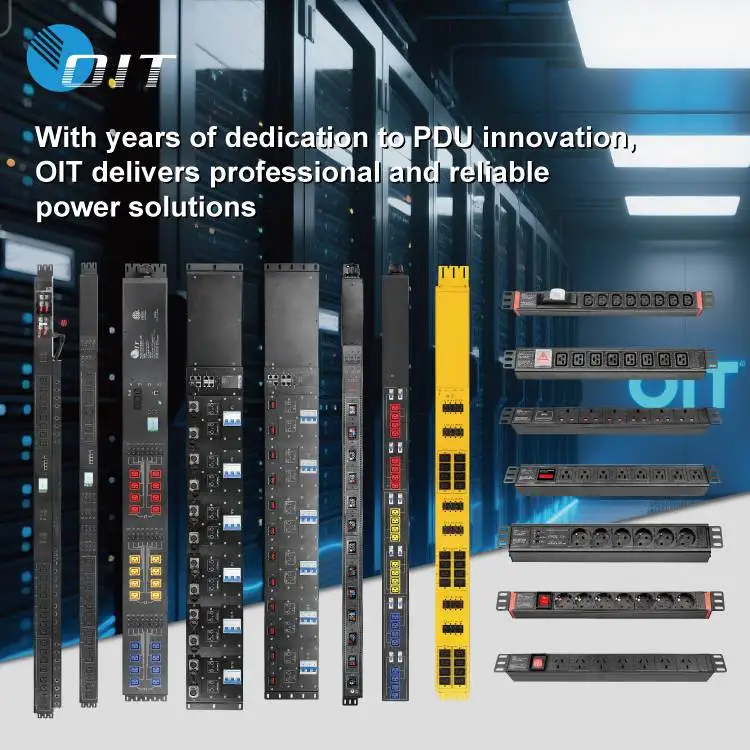

PDUs Recommended by seller
Frequently Asked Questions
Q1: What are the main features of the OIT-SMART-XPDU?
A1: The OIT-SMART-XPDU features real-time power monitoring (voltage, current, load, energy consumption), programmable alarms for over/undervoltage and overload, sequential startup to prevent inrush current, and remote outlet-level control (on Switched versions).
Q2: What is the difference between the Metered and Switched versions of Orient PDUs?
A2: The Metered version provides real-time power monitoring and energy measurement at the aggregate/phase level. The Switched version adds remote outlet-level ON/OFF control, allowing you to reboot or shut down connected equipment remotely.
Q3: What input current and phase configurations are supported by this model?
A3: This PDU model supports 3-phase input with a maximum current of 63A per phase, with input voltage ranges of 200-240/346-415VAC.
Q4: How does the sequential startup function work?
A4: By default, it features a 1-second sequential startup delay between outlets. This interval can be adjusted via the management platform to prevent high inrush currents and protect system stability when powering on multiple servers.
Q5: What communication protocols does the monitoring meter support?
A5: The PDU supports SNMP V1/V2c/V3, HTTP/HTTPS, Telnet/SSH, MODBUS-RTU/TCP, NTP, SSL/STL, and SMTP/SMTPS for easy integration into data center DCIM systems.
Q6: Are Orient PDUs certified for international markets?
A6: Yes, Orient products are manufactured under ISO 9001:2015 certification and meet international safety and environmental standards, including ETL, CE, RoHS, and REACH.
