China Rack Mount Static Transfer Switch PDU - Quality Suppliers and Factory Solutions for Reliable Power Management
Monitoring of total load current, total load power, total input voltage, and total power usage total current, voltage upper and lower limit monitoring, input power AC and DC status monitoring
Setting of voltage upper and lower limits, setting of total load current upper and lower limits
Custom alarm: When the total load current or voltage exceeds the threshold, the system will alarm.
When the total load current or voltage exceeds the rated value, the system will alarm with the mode of buzzer/ SNMP-torp/ Email.
The screen turns off after 3 minutes by default. The off time can be customized on the web. Press UP for -10s to enter the main menu, where you can control the relay output and set the IP dynamic and static switching. Long press UP to return to the menu home page. Long press down for 10 seconds to restart the system

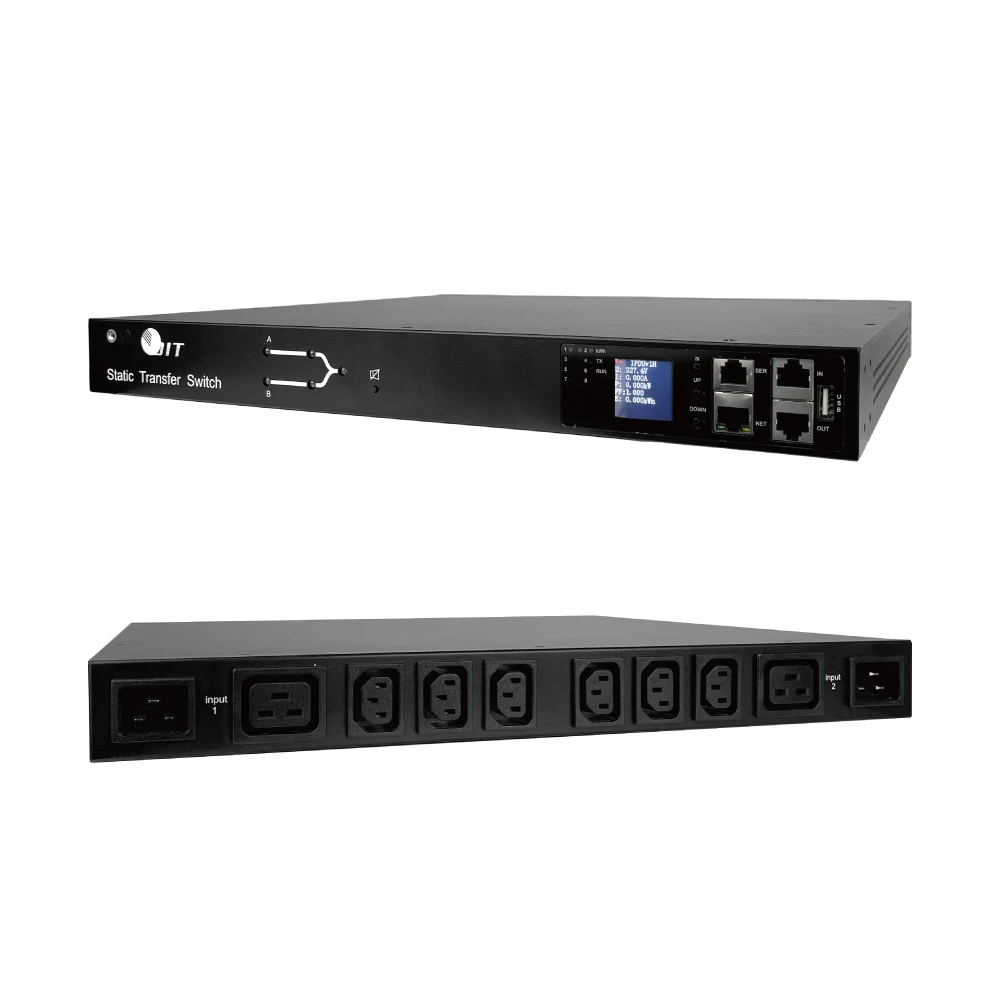

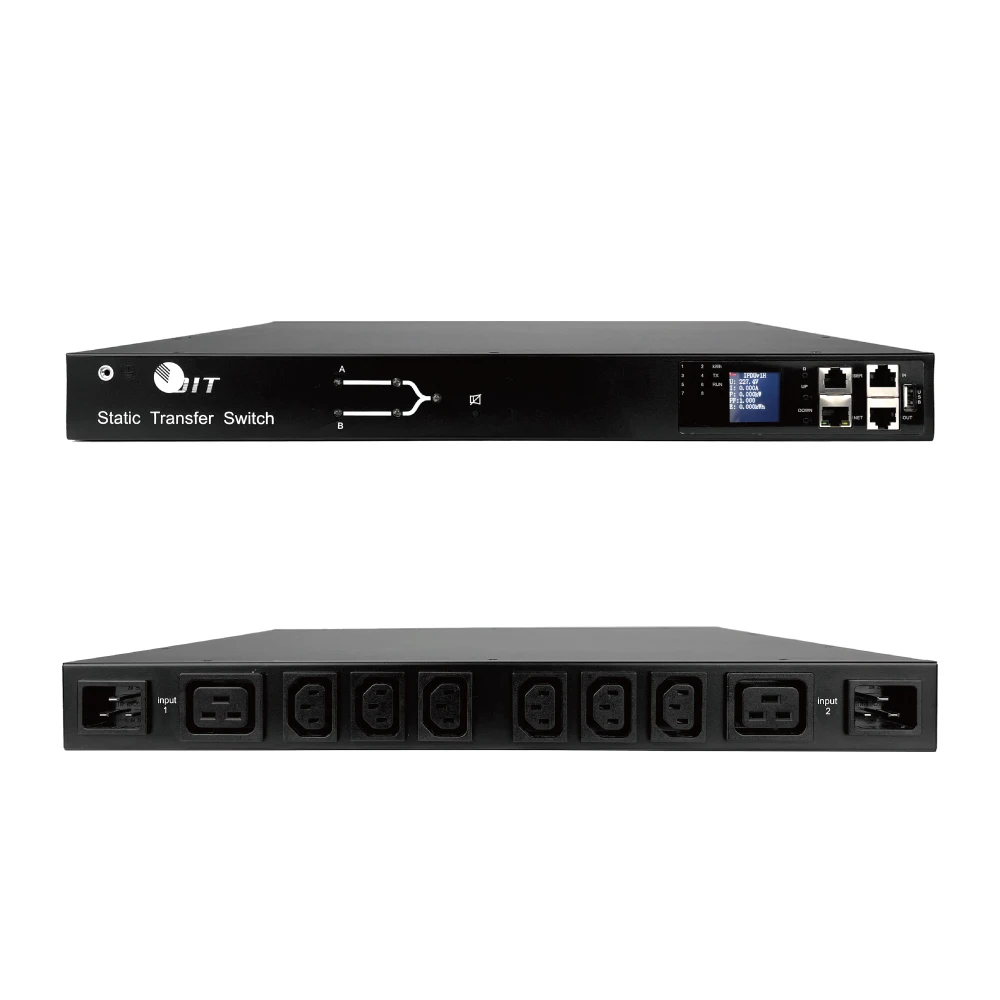

Smart Static Transfer Switch
Smart STS (Static Transfer Switch) is an advanced power management solution designed to ensure continuous operation of critical systems during power disruptions. Utilizing cutting-edge electronic switching technology, this device seamlessly transitions to a backup power source in the event of a primary power failure, significantly reduces switch-over delays and minimizes the risk of failures. Ideal for data centers, healthcare facilities, and other critical applications requiring uninterrupted power supply, the Smart STS not only enhances system reliability and safety but also optimizes power management and preventive maintenance through its intelligent monitoring capabilities.
Smart Static Transfer Switch (STS) – Product Features
Uses network communication to control STS input source switching and output relay ON/OFF operation.
Supports SNMP, TCP client/server (customized), Telnet, SSH, and Modbus (TCP/RTU). Includes email alarm notifications and supports up to three user accounts.
Displays real-time total circuit data, including voltage, current, frequency, power factor, active power, reactive power, and power.
Displays branch output parameters including voltage, current, frequency, power factor, active power, reactive power, and power.
RS485 protocol supports reading device information and remotely controlling output relay ON/OFF
| item | value |
|---|---|
| Place of Origin | Guangdong，China |
| Brand Name | OIT/customization |
| Model Number | STS-DPDU-V5-C1306-C1902-16A-2XC20 |
| Whether the smart | Yes |
| Application | Industrial, electric industry |
| Material | SGCC |
| Product name | Intelligent STS static transfer switch |
| Socket combination | 6 C 1 3 + 2 C 1 9 |
| Cable plug typ | C20-C19 OR 16A-C19 |
| STS switching time | 4ms |
| net weight | 4.9 kg |
| Dimension | 483*440*45 mm |
| Accessories | M6 Screws, nuts 4 pcs ,manual 1 pcs |
| Rated voltage and current | 220VAC |
| Safety certification mark | IEC60227 |
| Function | Monitoring, alarm, LCD display |
Company Profile – Orient Tech Limited
Orient Tech Limited, a 18000 sqm manufacturer with 300+ wokers, established in 2011, is a professional manufacturer specializing in data center infrastructure solutions, server cabinet equipment, power distribution units (PDU), and perimeter power management devices.
We operate two major business divisions to meet the diverse needs of IT infrastructure, telecom, and data center industries worldwide.
- Rack Power Distribution Units (PDU)
- Basic and intelligent PDUs
- KVM switches and KVM server solutions
- Cabinet temperature monitoring and environmental control systems
- Industrial computer chassis
- Server chassis and rackmount enclosures
- Data storage chassis solutions
- Industrial power supply systems (OEM/ODM)
- Industrial guide rail systems and accessories
Orient Tech Limited provides professional technical support through an experienced team of IT consultants and service engineers. Our core engineering team has over 15 years of manufacturing experience, maintaining strict quality control and a highly responsible working attitude throughout production. Our products comply with multiple international standards, including: UK, USA, Australia, France, Italy, Switzerland, and China GB standards, ensuring global compatibility and reliability. Our smart/basic PDUs and power distribution systems are designed to meet global data center and telecom industry requirements.
We always follow a high-quality manufacturing philosophy, focusing on core technology innovation and continuous improvement. With honesty, dedication, and precision engineering, we continuously strengthen our capabilities. By prioritizing quality first, we train highly skilled professionals and deliver premium IT infrastructure products and power solutions to global customers in the data center, telecom, and enterprise IT industries.
To become one of China’s leading providers of IT infrastructure equipment, power distribution systems, and data center solutions for global telecom operators and enterprise customers.
To provide safe, innovative, energy-saving, and cost-effective intelligent power management and rack solutions, and to become a pioneer in smart and energy-efficient IT infrastructure products.
CORE VALUES
Execution | Integrity | Honesty | Innovation | Unity
QUALITY POLICY
Customer First | Full Participation | Continuous Improvement
SERVICE COMMITMENT
We are committed to delivering the best service and high-quality products to earn your trust. Our goal is to build long-term, stable, and mutually beneficial partnerships with global customers in the data center, IT infrastructure, and power distribution industry.
SOCIAL RESPONSIBILITY
We actively support social responsibility initiatives and are committed to helping children in underdeveloped mountainous areas continue their education, contributing to a more sustainable and better future.
Always final Inspection before shipment;
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese
