China Factory APDU Meter with Fan Cooling - 24 Ports C19 from Leading Suppliers
| Input characteristics | |
| * Easily create any rack size by stacking and connecting units | |
| * Can hold any 19'' network switch | |
| * Facilitates cable management, with extra cable gutter | |
| * Central shelve has adjustable height so it can hold different server types | |
| * C13 or C19 plug or Customized for you | |
| * Can be Customized with your logo | |
| Other characteristics | |

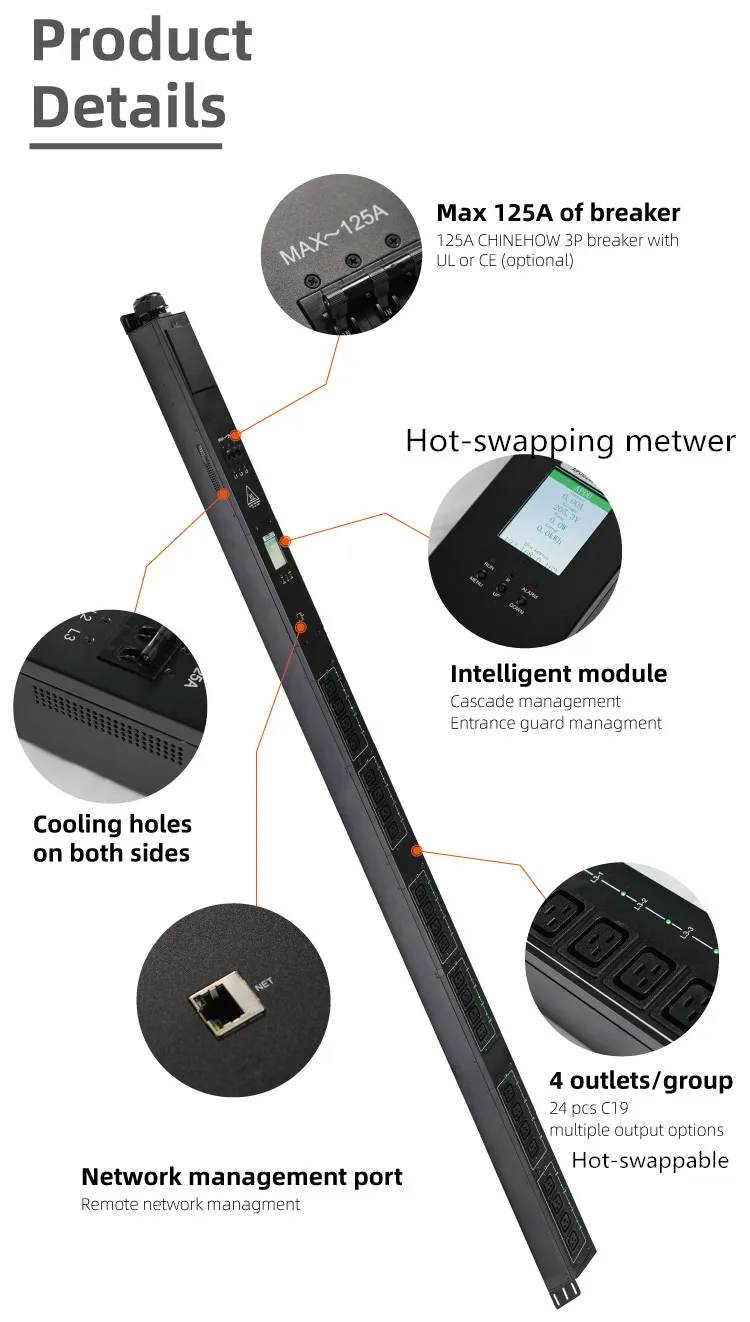

| Product Name | OIT-APDU-24C19-125A-FAN |
| Cercuit breaker brand | Made In China |
| Input Voltage | 415V 3phase(LLLNG) |
| Input Connector | 125Ax5wires (or juction box, inout breaked optional) |
| Frequency | 50/60Hz |
| Total Current | Max 125A |
| Rating output voltage | 380-415VAC |
| Wire specification | UL certification, with flame retardant function |
| Certification | ETL ROHS CE |
| Product size | L*W*H=2067x94x85mm |
| Net Weight | 18kg |
| Test items | |
| hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Product color & material | |
| Product color | Silver white or black |
| Plastic flame retardant rating | UL94V-0 grade |
Socket Selection
Plug Selection
Function Module Selection
Benefits from customisable types and numbers of sockets and plugs:
Meet your different requirements and create a unique and personalised PDU product for you.
Benefits from customisable modules or smart modules as follows:
1. Multi-functional lightning and surge protection: to protect customers' data security
2. IPDU Smart Meter: detect the temperature and humidity of the server room environment, support cascade management and network management functions
3. Sockets & plugs: can be customised according to customer requirement
4. Power indicator: shows whether the circuit is energised or not
5. Circuit breaker: connects and cuts off the current to protect the circuit.
What makes our PDU (Power Distribution Unit) to be unique compared with others?
1. We have been specialized in this line for over 12 years.
2. We are the manufacturer.
3. All of our goods need to be 100% tested before shipping.
4. We only supply safe and high quality sockets.
5. We support OEM & ODM.
6. We have R&D department in Shenzhen and we have own core technology-smart PDU.
7. Any special customization will be welcome.
Frequently Asked Questions
What are the input power specifications for the OIT-APDU-24C19-125A-FAN?
The unit operates on an input voltage of 415V 3phase (LLLNG), with a frequency range of 50/60Hz and handles a maximum total current of 125A.
Can I customize the socket types and input plug options?
Yes, we support complete customization. You can choose C13, C19 sockets, or other customized socket types, along with customizable plugs to meet your local requirements.
What smart management features does this PDU support?
The IPDU Smart Meter module supports detection of server room temperature and humidity, cascade management, and advanced network management functions.
What safety certifications and testing standards does this product meet?
This PDU is ETL, CE, and RoHS certified. Additionally, 100% of our units pass rigorous hi-pot, grounding, and insulation resistance (IR) testing before shipping.
Do you support OEM/ODM branding?
Absolutely. We are a direct manufacturer with over 12 years of specialization in this industry, supported by our own R&D department in Shenzhen to offer comprehensive OEM & ODM customization.
